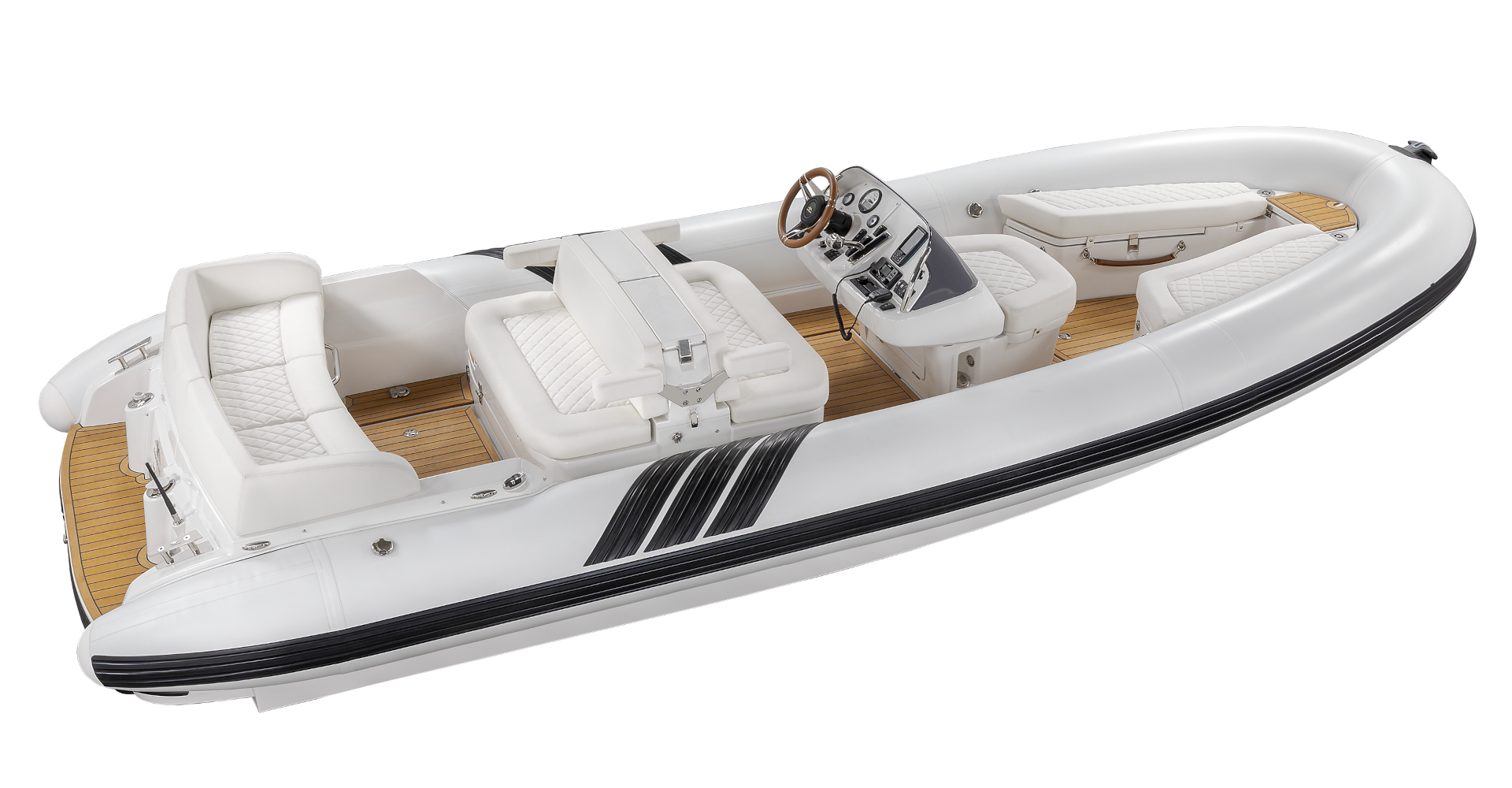

jet tender 19

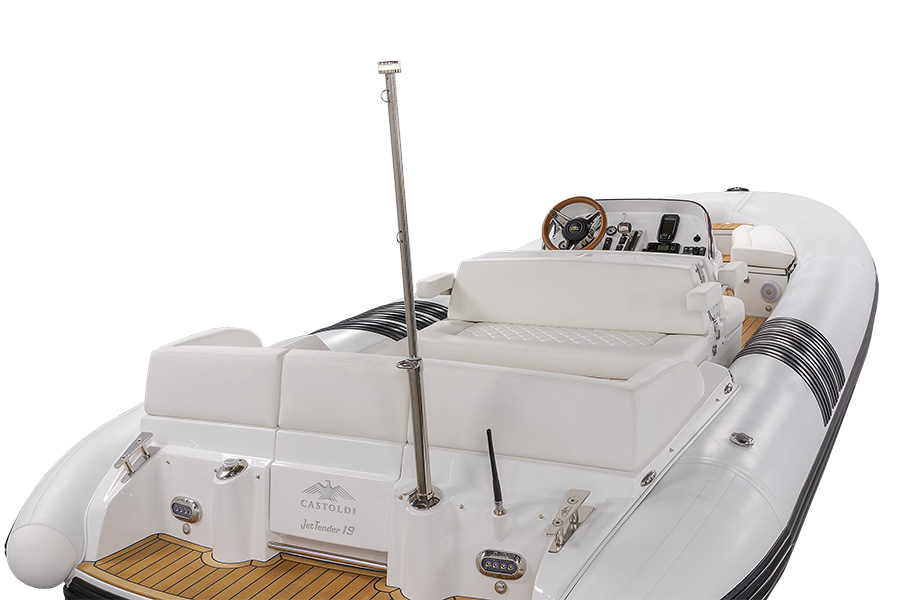

1 Removable ski pole with bayonet jointed 360° white light

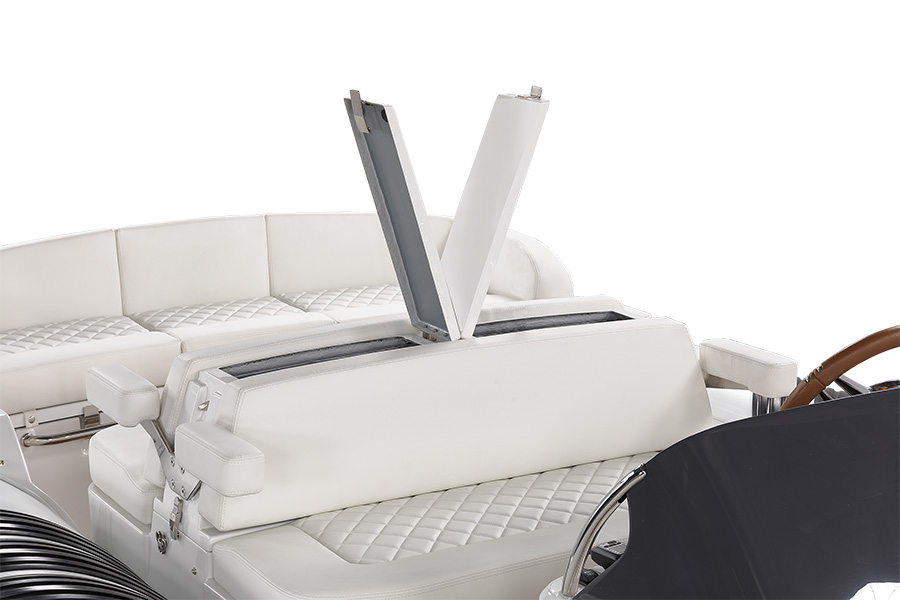

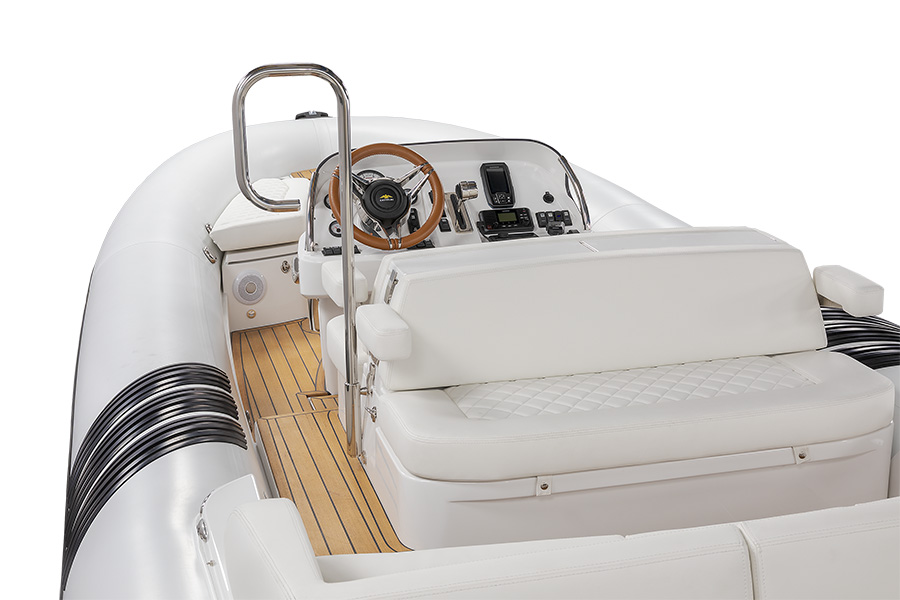

2 Removable backrests

3 Quick in-out tube system connection

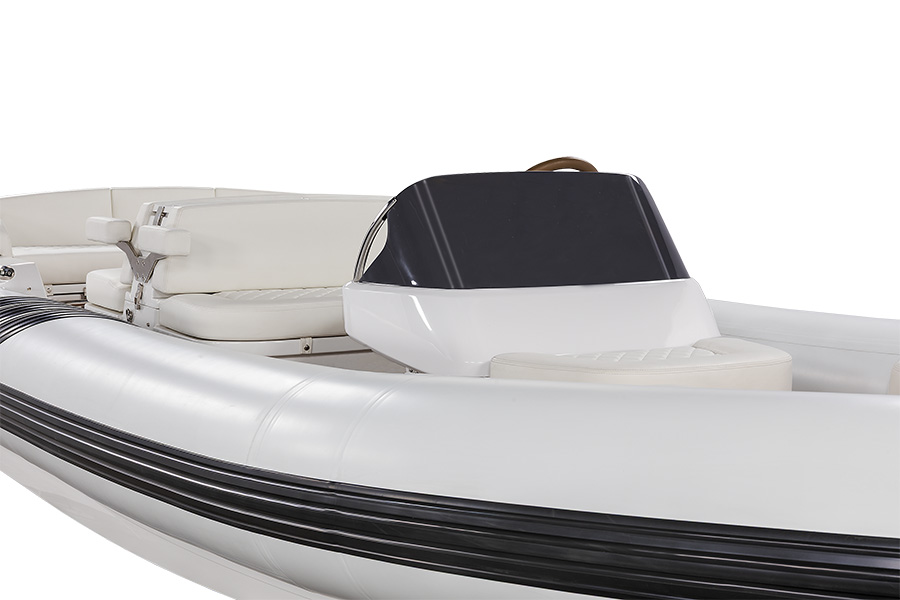

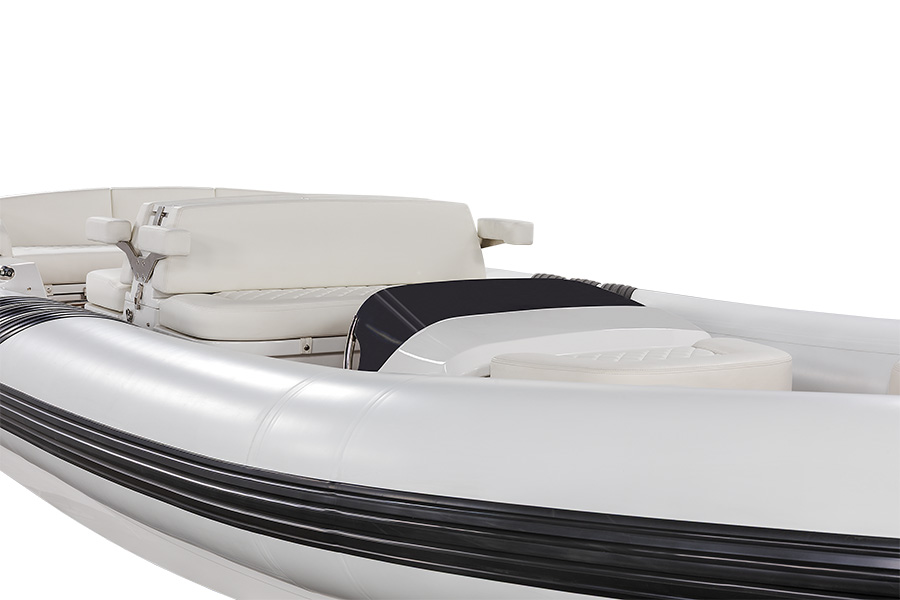

4 Electrically actuated folding console

5 Integrated inflator system with dashboard activation switch (optional)

6 Removable section for easy access to swim platform

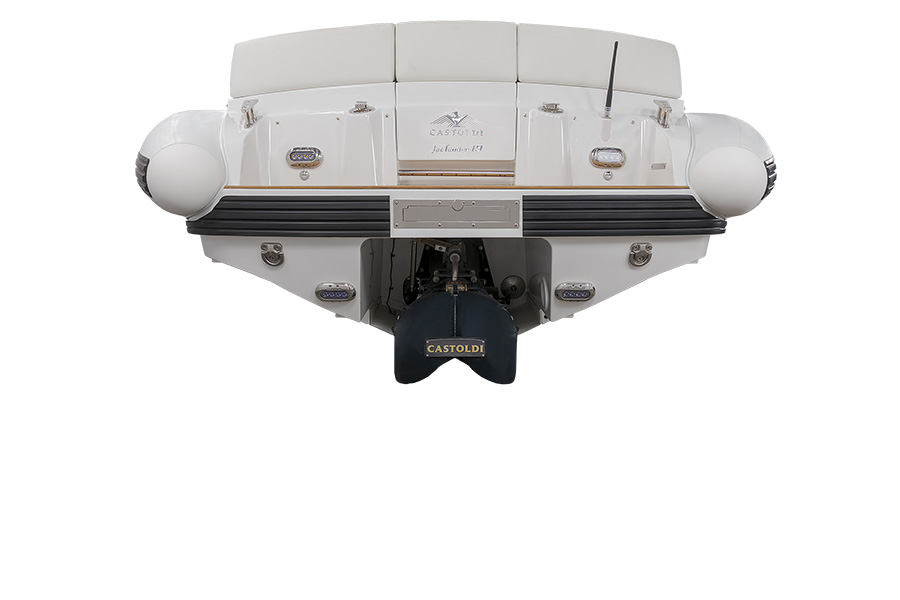

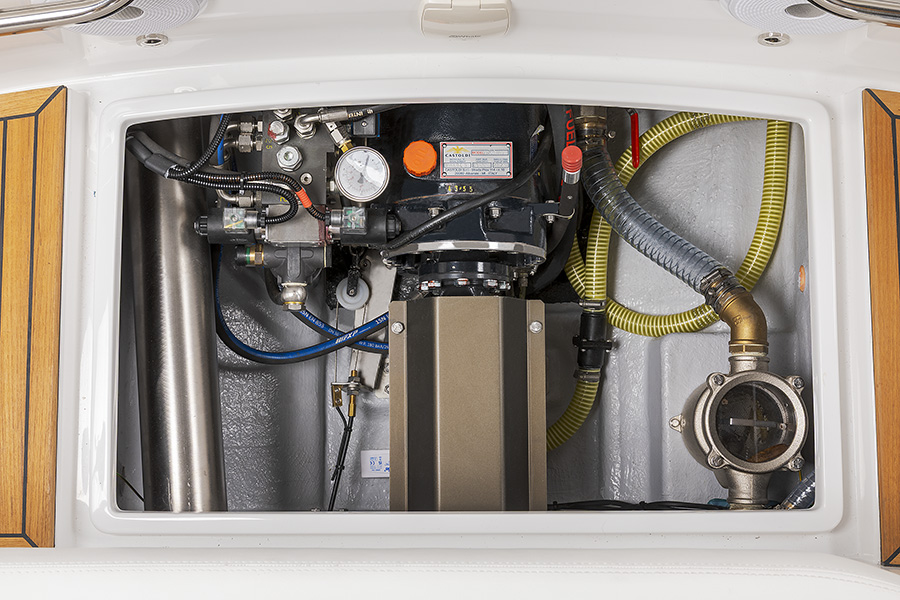

7 Professional Castoldi waterjet drive with stainless steel and titanium parts

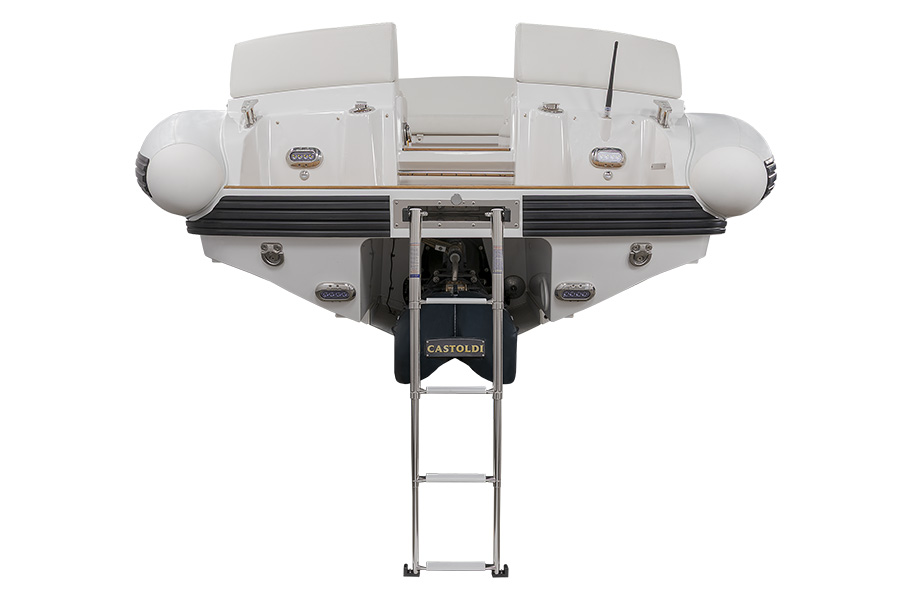

8 Recessed 4 steps swim ladder

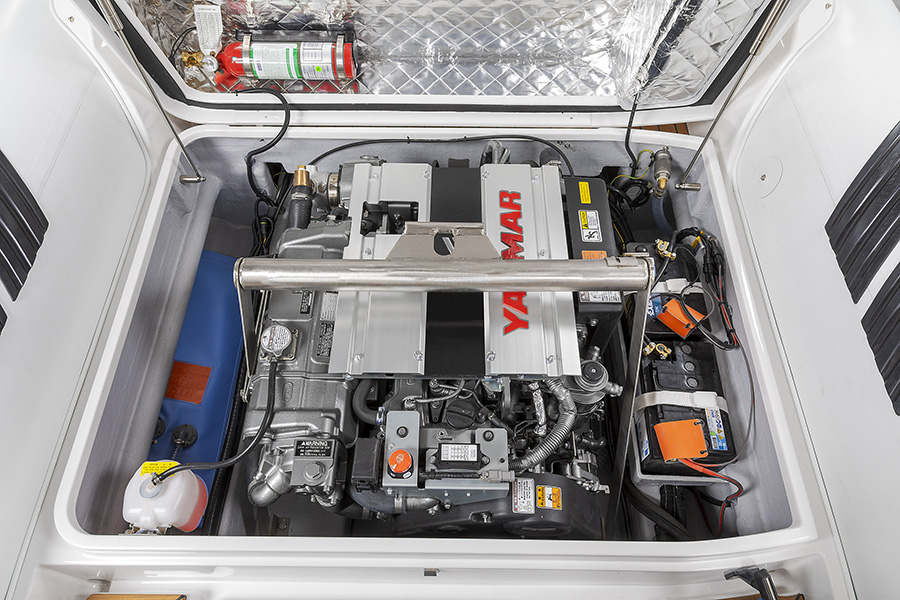

9 Engine cover with full width opening

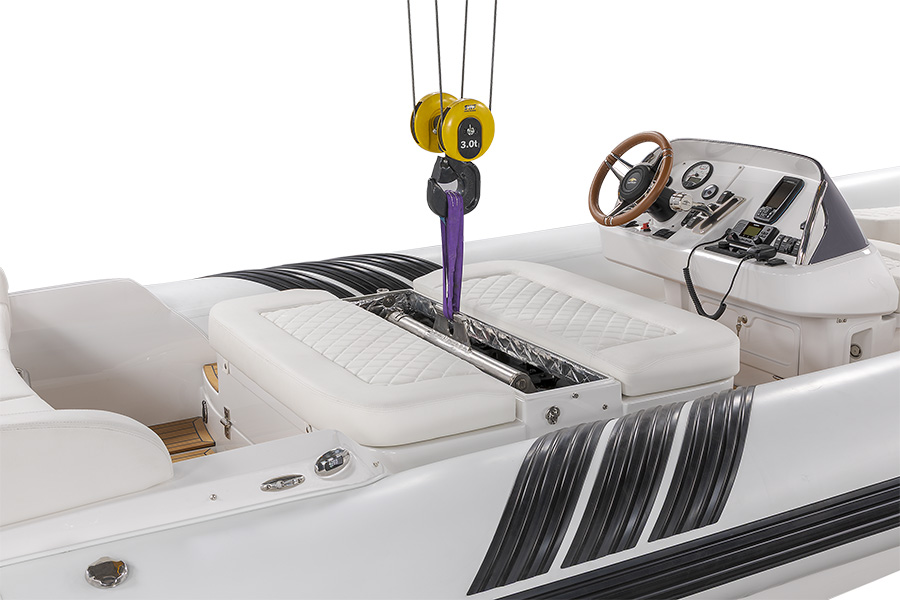

10 Recessed single point lifting eye (optional)

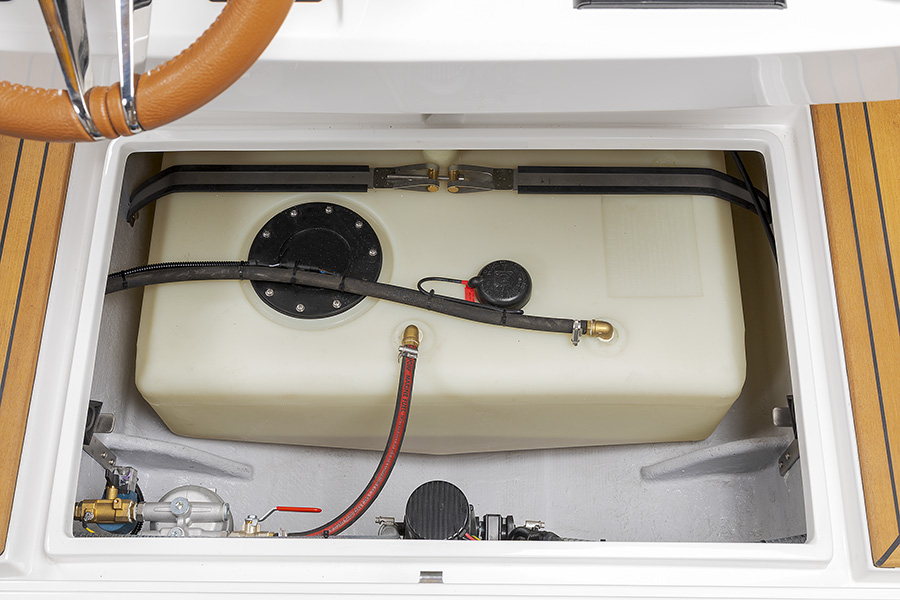

11 Inspectable and extractable cross-linked polyethylene 112 l fuel tank

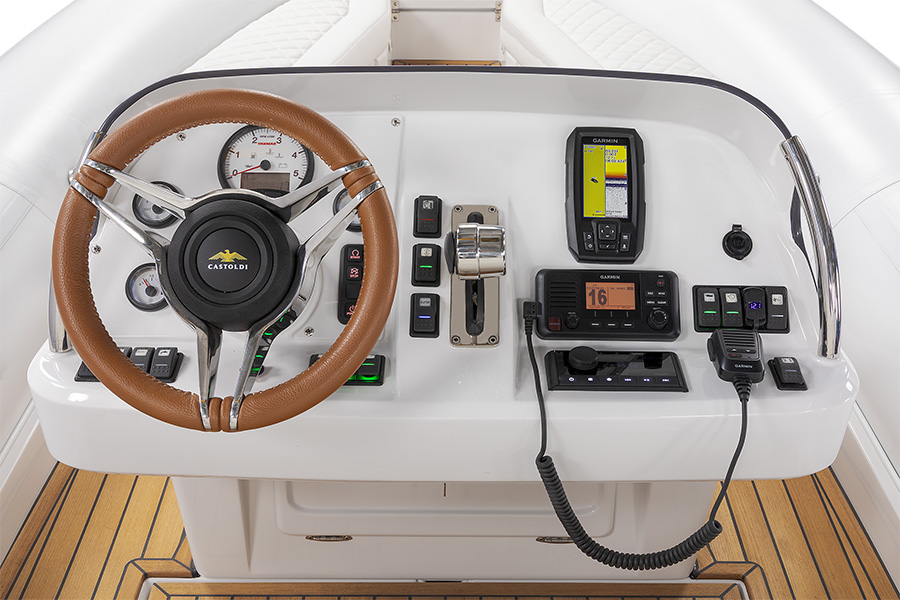

12 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control

13 Utility peaks

Technical Characteristics

Length o.a.
5,98 m
Length max. for storage
5,80 (with front air chamber deflated)
Beam max.
2,44 m
Height max. at bow
1,18 m
Height max. for storage
1,03 m (with folded console, front air chamber deflated and backrest removed)
Passengers (C.E. Directive)
No. 10
Design category (C.E. Directive)
C
Engine
A) 170 mHP VM diesel - B) 230 mHP Yanmar diesel
Propulsion system
Castoldi waterjet unit type Turbodrive 240 H.C.T. with hydraulic clutch and movable grid
Boat weight
A) 1.200 kg - B) 1.270 kg (empty with oil and water in the engine and oil in the waterjet)
Fuel capacity
112 l
Carrying capacity
1.020 kg
Top speed
A) 36 - B) 39 knots light loaded / A) 31 - B) 37 knots full loaded

Construction

Hull
Single skin structure, hand laid Kevlar
and vinylester resin

Deck, console
Sandwich structure, hand laid glass and
isoftalic polyester resin with nidaplast core

Stringer System
Sandwich structure, hand laid Kevlar and vinylester
resin with polyurethane closed cell foam core

Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670
Dtex No. 5 separate airtight compartments

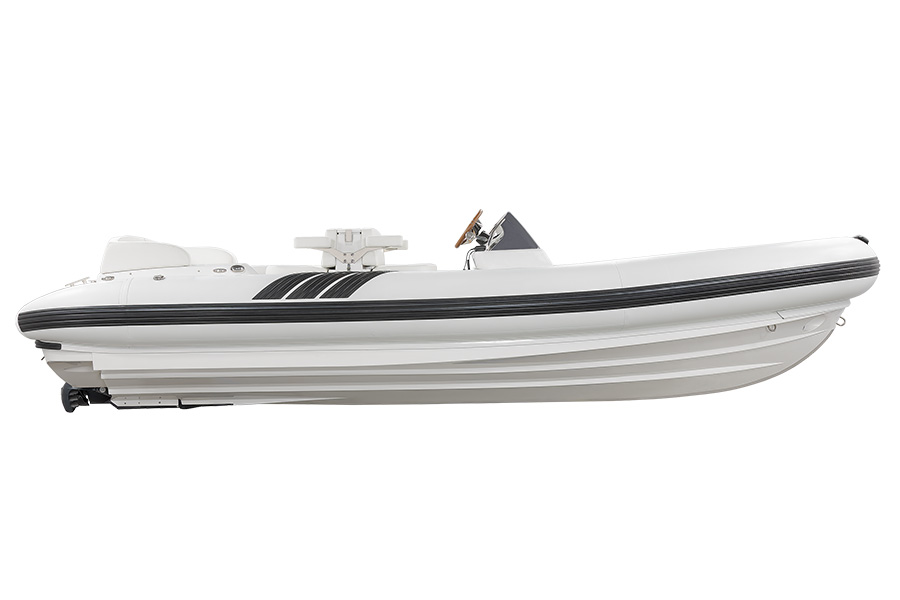

MY 2024 model with deep V hull and new console layout
