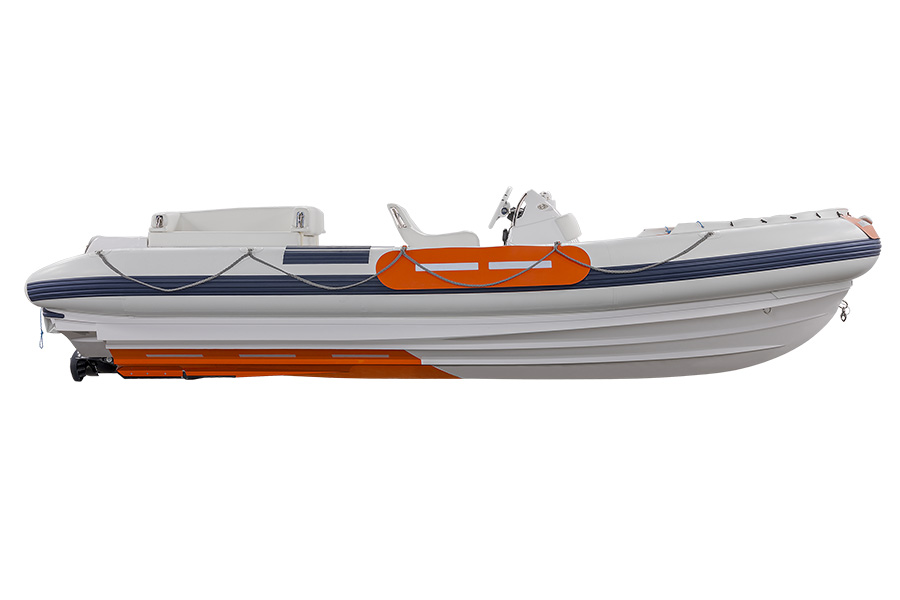

jet tender 19 RB / SOLAS

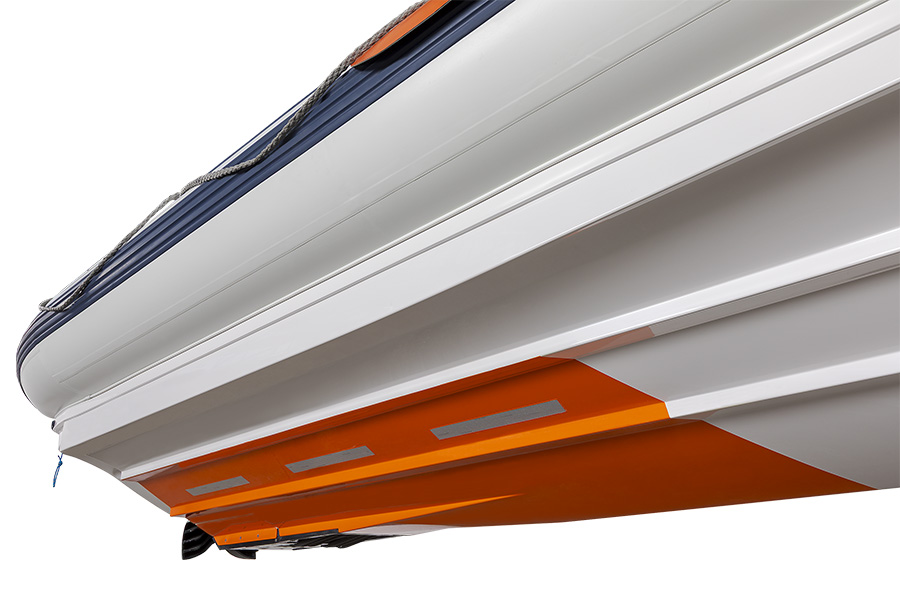

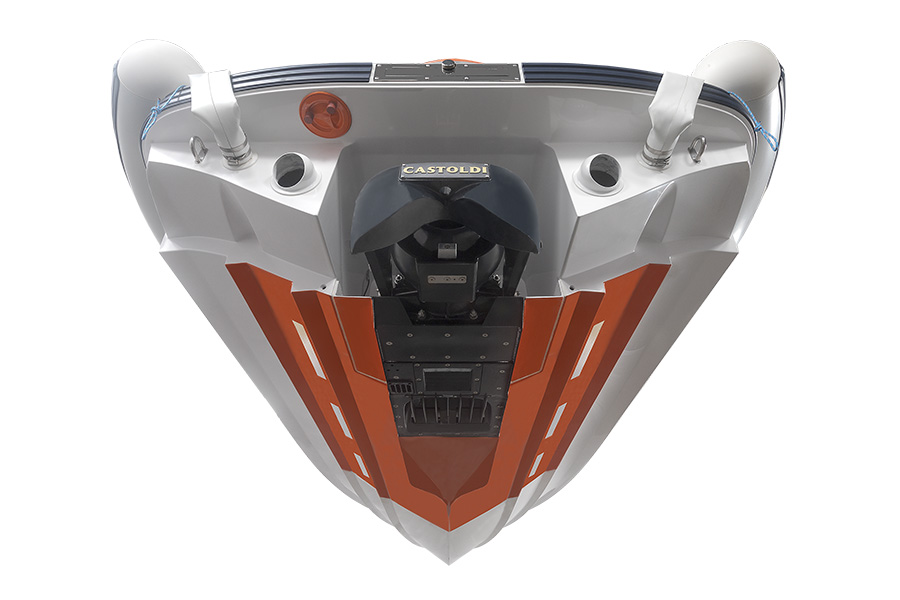

Orange painted keel area

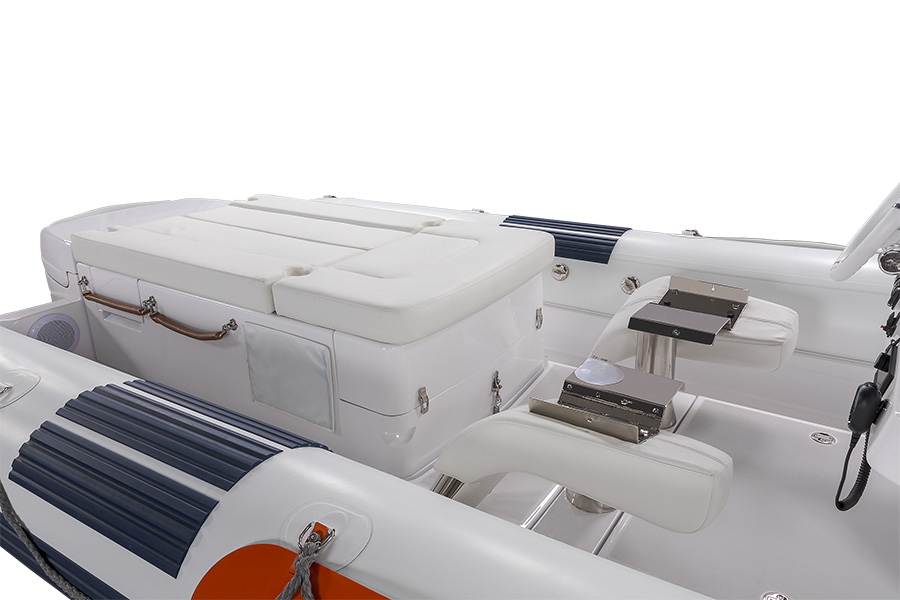

Removable backrest for stretcher housing

Quick in-out tube system connection

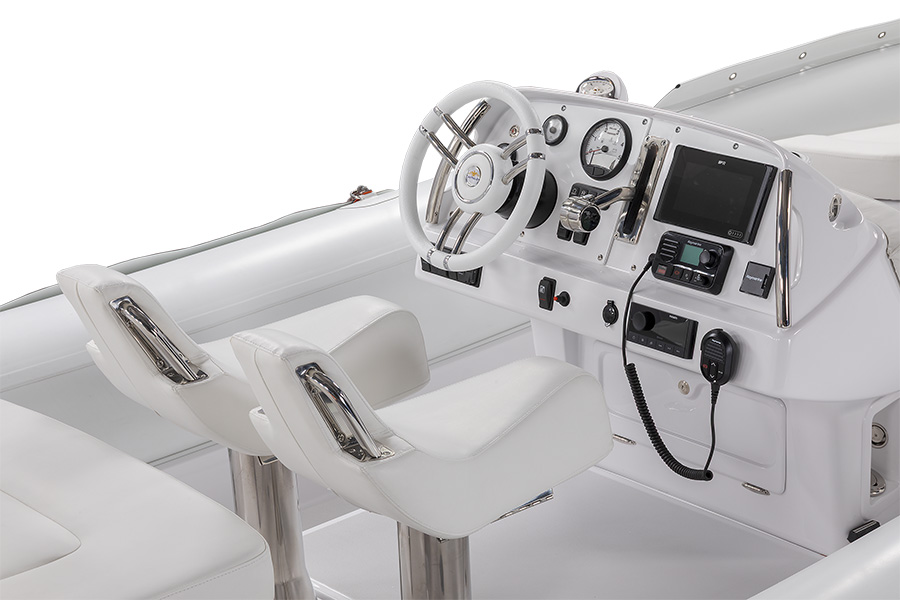

Hydraulic actuated folding console

Removable 360° white light

Fast release hook

One only direction water scuppers

Ski hook

Self righting system activation handle

10 Professional Castoldi waterjet drive with stainless steel and titanium parts

11 Recessed 4 steps swim ladder

12 R.I.SE.R peak (recessed inflatable self righting system)

13 Removable orange patch

14 Inspectable and extractable crosslinked polyethylene 112 l fuel tank

15 Fast release hook activation handle

16 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control

17 Removable orange patch

18 Utility peak

19 Removable orange patch

Technical Characteristics

Length o.a.
5,98 m
Beam max.
2,44 m
Height max. at bow
1,18 m
Passengers (SOLAS Directive)
No. 5+1
Design category (C.E. Directive)
C
Engine
170 mHP Volvo Penta diesel SOLAS
Propulsion system
Castoldi waterjet unit type Turbodrive 240 H.C. with hydraulic clutch and movable grid
Boat weight
1.300 kg (empty with oil and water in the engine and oil in the waterjet)
Fuel capacity
112 l
Carrying capacity (SOLAS)
711 kg
Top speed
36 knots light loaded - 32,5 knots full loaded

Construction

Hull
Single skin structure, hand laid Kevlar
and vinylester fire retardant resin

Deck, console
Sandwich structure, hand laid glass and vinylester
fire retardant resin with nidaplast core

Stringer System
Sandwich structure, hand laid Kevlar and vinylester fire
retardant resin with polyurethane closed cell foam core

Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670
Dtex No. 5 separate airtight compartments
