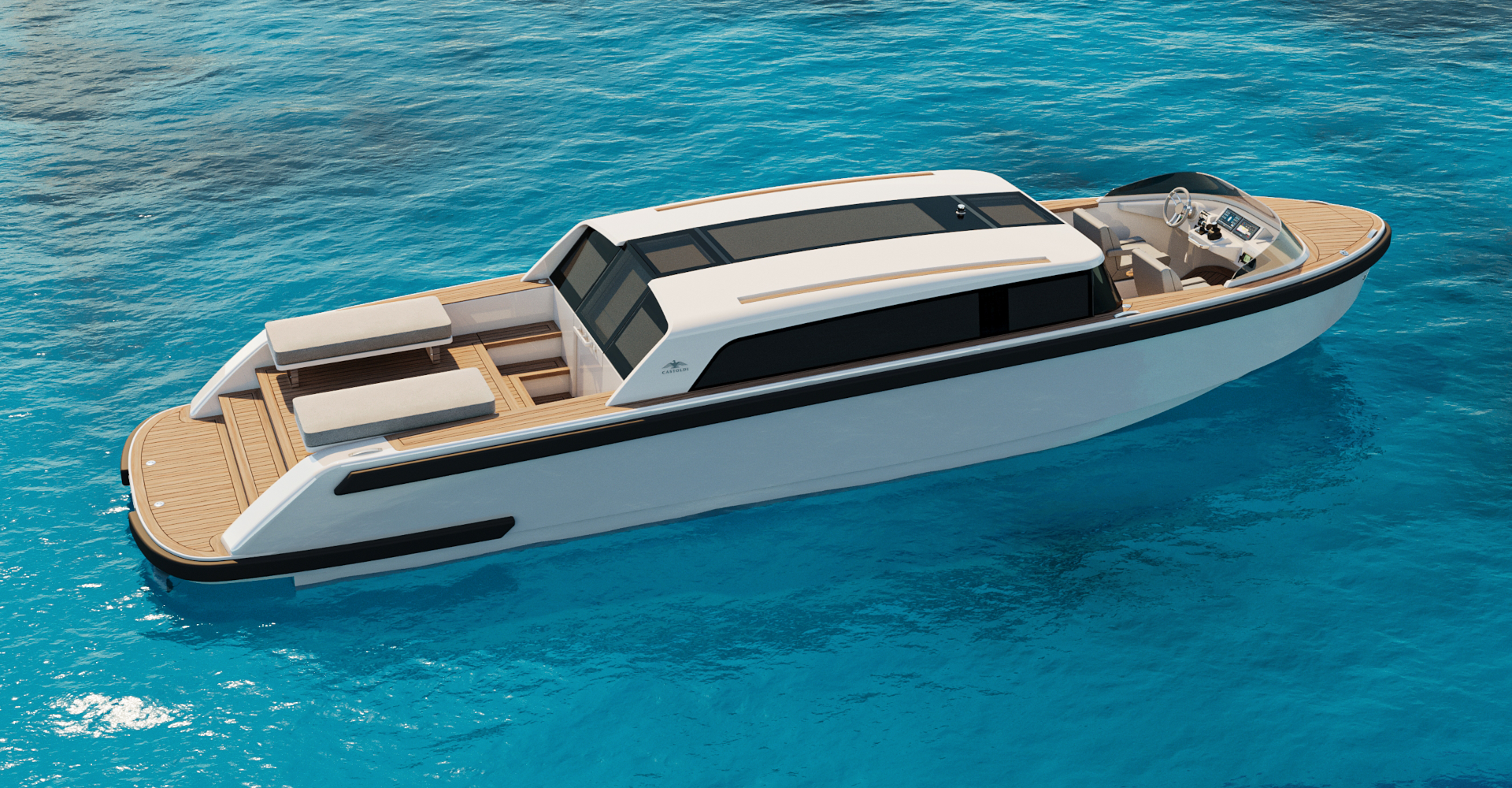

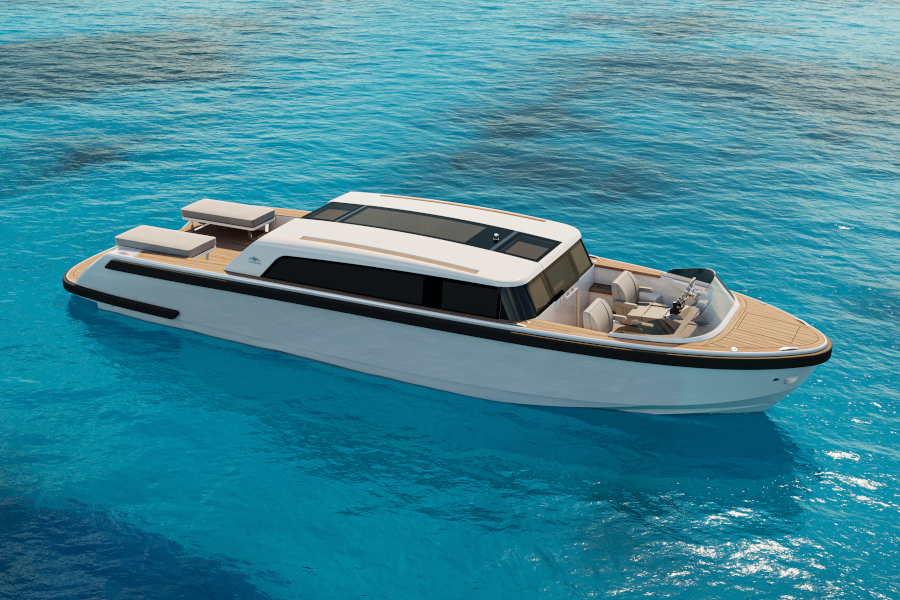

jet tender 34 LIMO

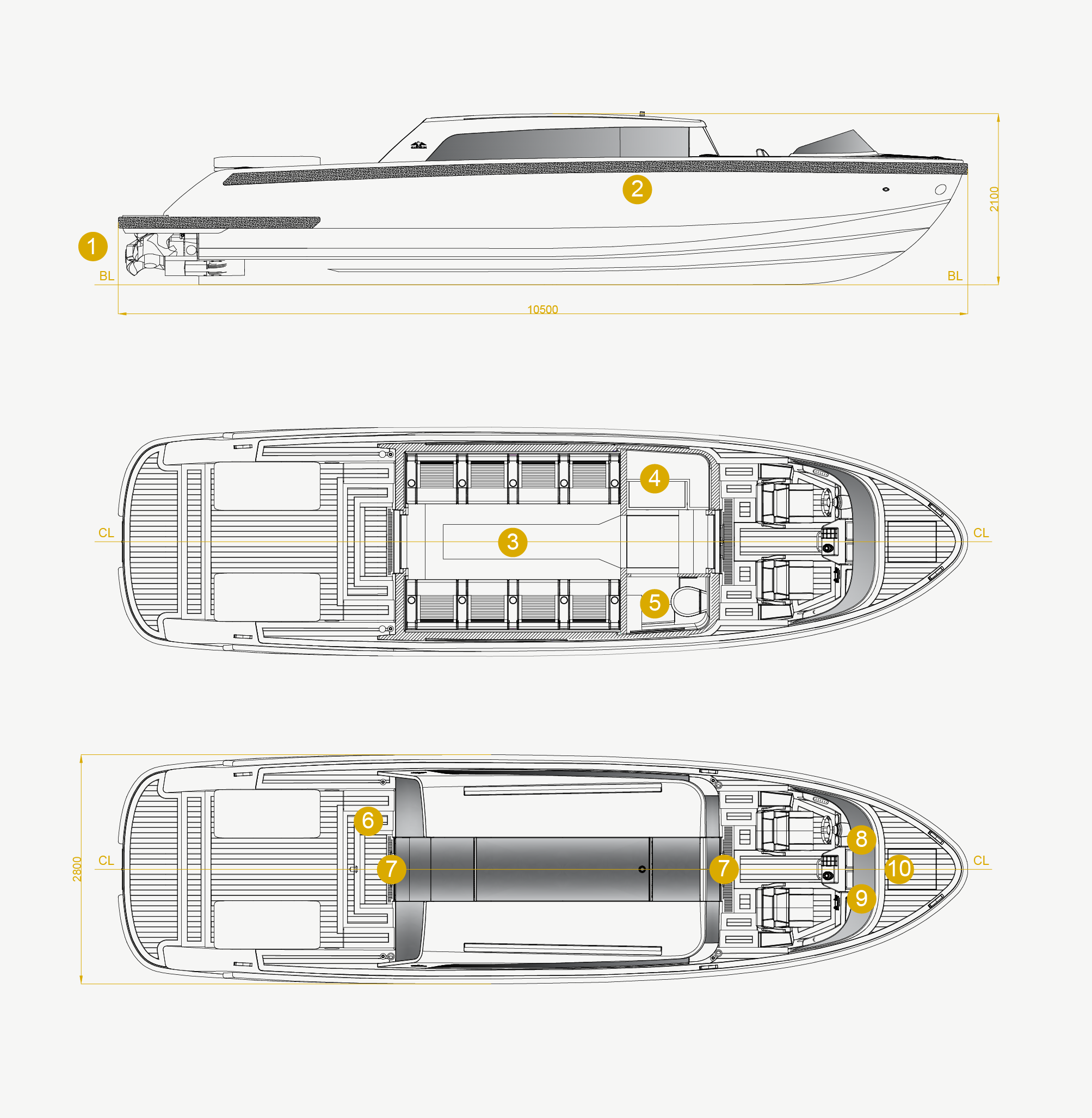

1 Professional Castoldi waterjet drives with stainless steel and titanium parts

2 Perimetrical soft foam fender

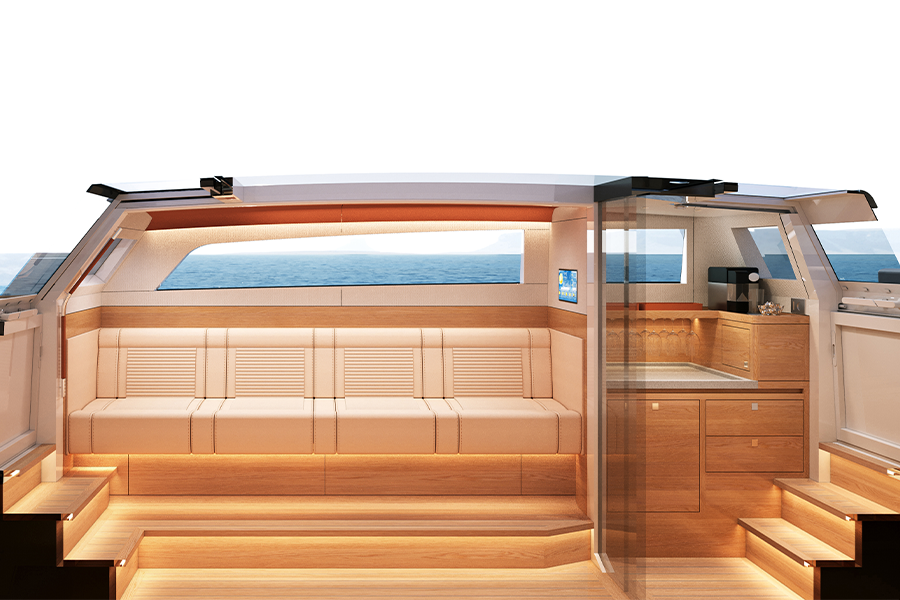

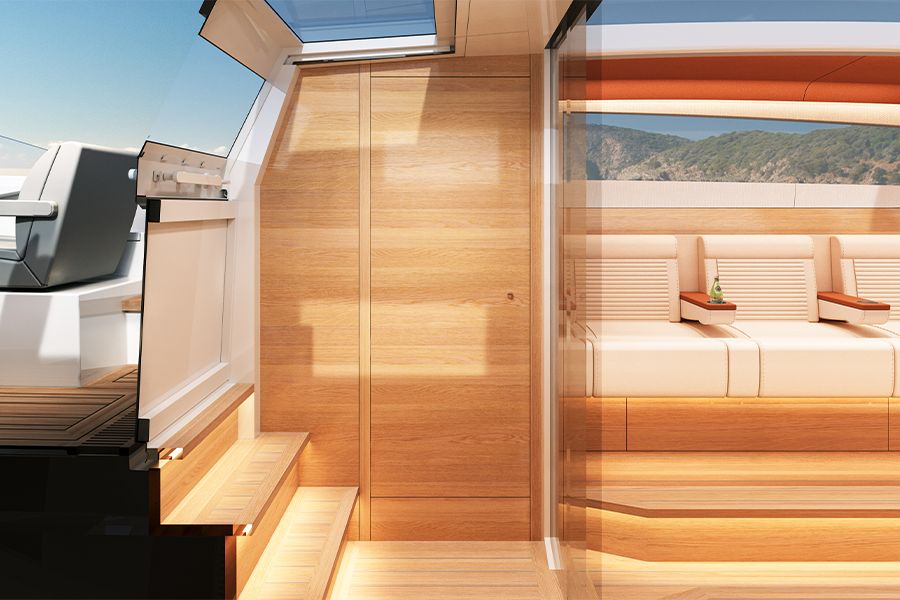

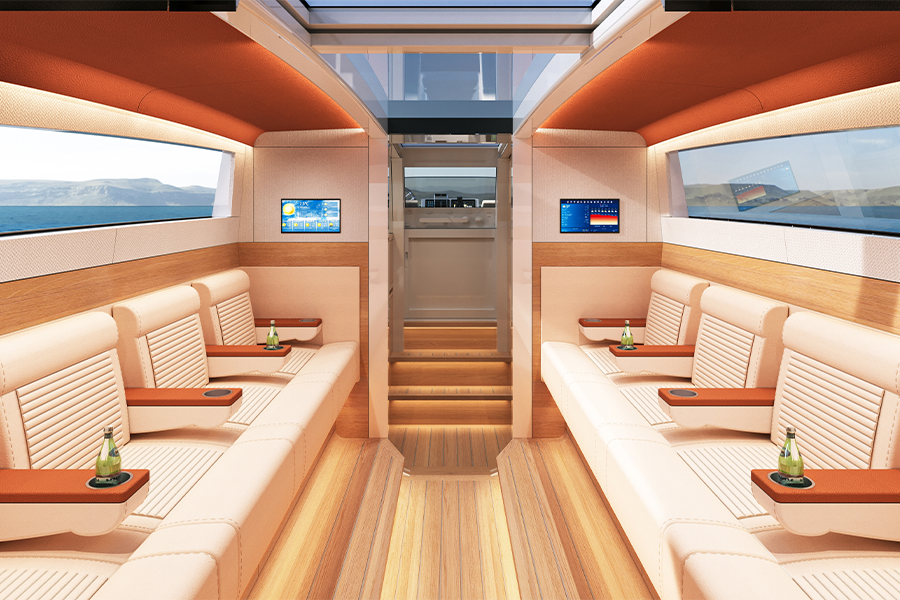

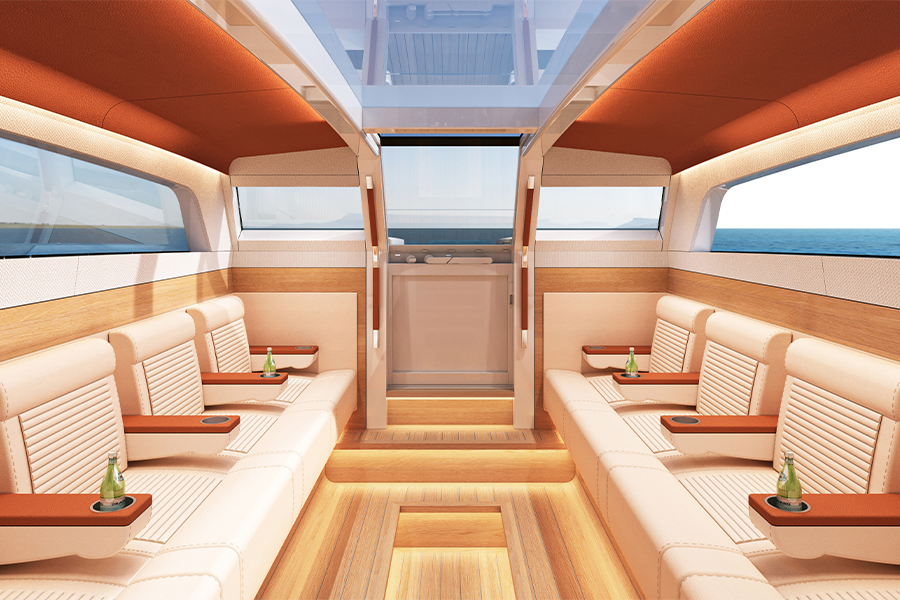

3 Enclosed cabin featuring air conditioning and heating system

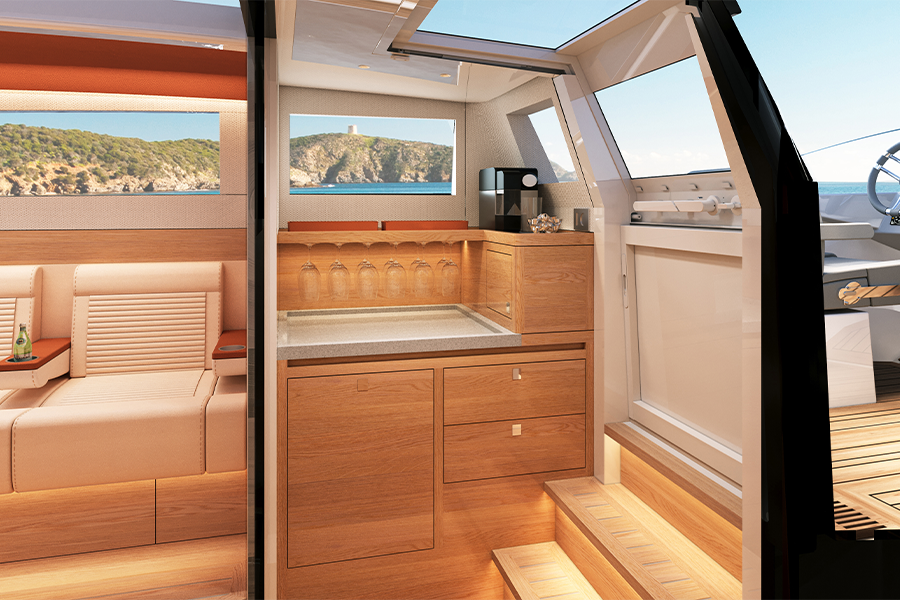

4 Complete pantry area with built-in refrigeration

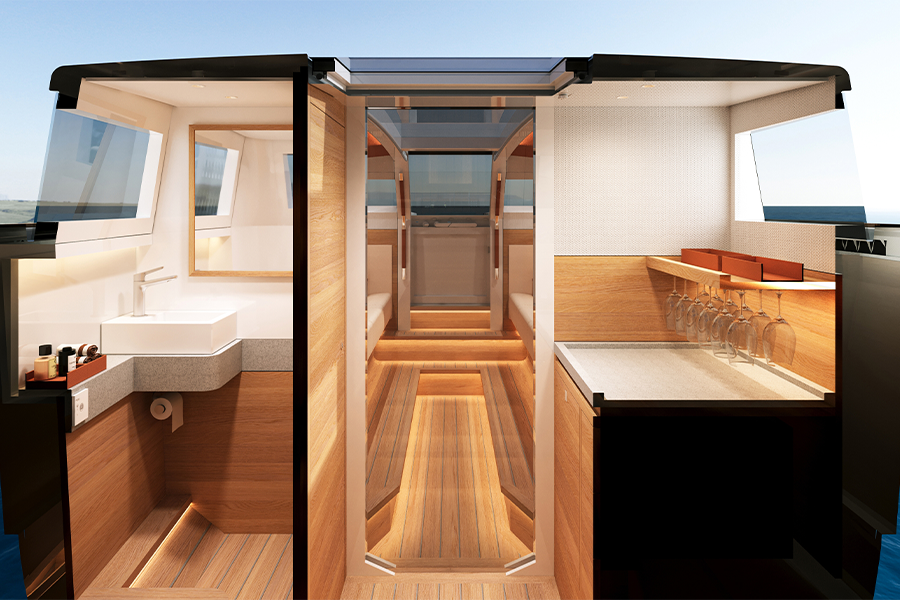

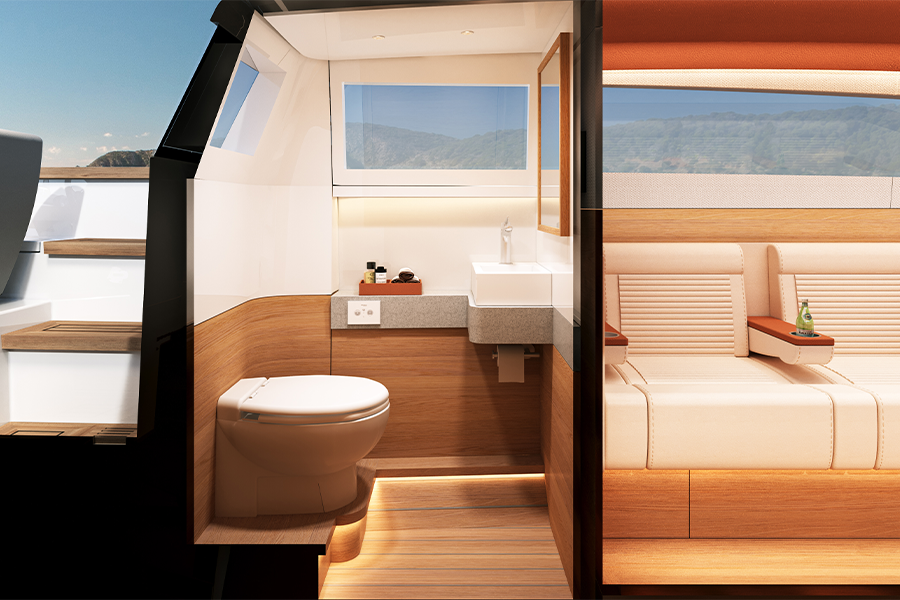

5 Private head with marine toilet and washbasin

6 400 l structural fuel tank

7 Gull-wing hinged doors for cabin access

8 Castoldi ACES electronic control system with joystick for docking

9 Widescreen multifunction display with digital switching for onboard services, audio system and VHF

10 Retractable bimini top for pilot overhead protection

Technical Characteristics

Length o.a.
10,50 m
Beam max.
2,80 m
Height max.
2,10 m
Passengers (C.E. Directive)
No. 12+2
Design category (C.E. Directive)
C
Engines
No. 2 x 250 mHP Yanmar diesel
Propulsion systems
No. 2 x Castoldi waterjet units type Turbodrive 284 H.C.T. with hydraulic clutch, movable grid and Clear-Duct unclogging system
Boat weight
5.800 kg (dry weight with oil and water in the engine and oil in the waterjet
Fuel capacity
400 l
Top speed
35 knots light loaded

Construction

Hull
Single skin structure, hand laid Kevlar
and vinylester resin

Deck, console
Sandwich structure, hand laid glass and
isoftalic polyester resin with nidaplast core

Stringer System
Sandwich structure, hand laid Kevlar and vinylester
resin with polyurethane closed cell foam core
